1: Winding angle, 45°～65° (winding angle can be adjusted according to different requirements to achieve better mechanical properties);
2: Fiber content (weight ratio), 70% to 75%;
3: Density, 2.00g/cm3;
4: Water absorption, less than 0.03%;
5: Axial thermal expansion coefficient, 1.8E-05 1/K;
6: Glass transition temperature, 110～120℃;
7: Chemical resistance Mineral oil: excellent;
8: Solvent and dilute acid: excellent;
9: Tensile elastic modulus, axial 14000 MPa;
10: Tensile strength: 280 MPa in the axial direction; 600 MPa in the circumferential direction;
11: Shear strength: 150 MPa;
12: Bending strength: axial 350 MPa;
13: Compressive strength: axial 240 MPa;
14: Relative dielectric constant 2-3.2;
15: Dielectric loss factor 0.003-0.015;
16: Partial discharge ≤5;
17: Dielectric strength: axial 3～6kv/mm; radial 10～12kv/mm;
18: Lightning shock: 110KV;
19: Power frequency shock: 50KV;
20: Heat resistance class: B, F, H;
21: inner diameter > 5mm; outer diameter < 300mm; length < 2000mm.
The above data is only for reference, the casing parameters we produce are customized for each customer's needs!
Contact available at :
Jacky Shen - Sales manager
Email：jacky@zjhtxc.com

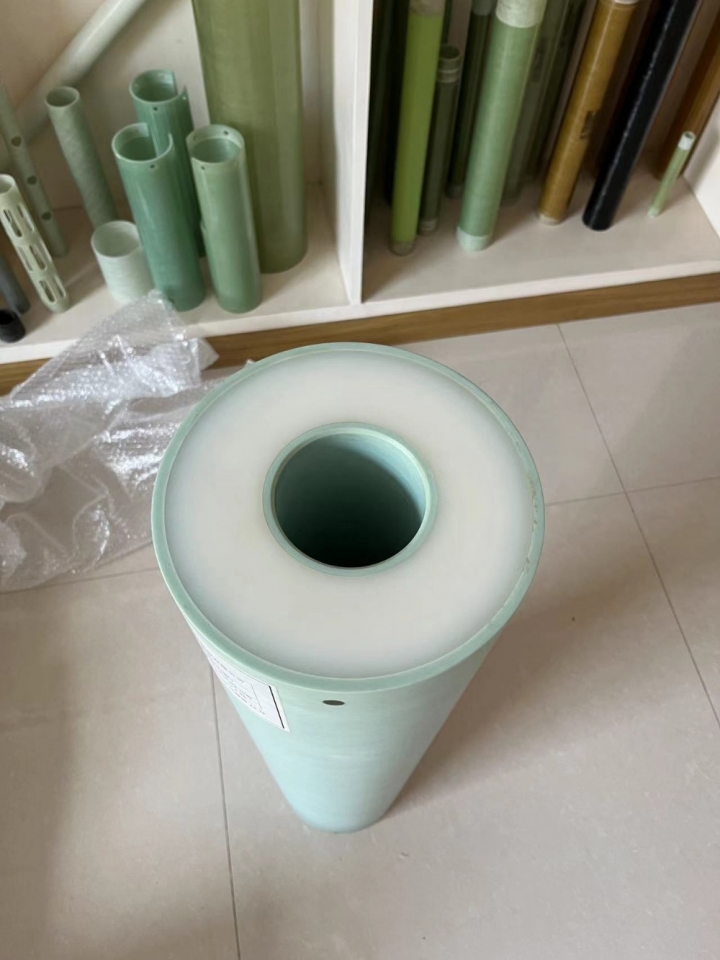

Product Name: 9 Diameter FRP Tube
Product Description: The 9 diameter FRP tube is a lightweight, high-strength, and corrosion-resistant pipe. It is suitable for applications in water treatment, chemical processing, power transmission, and more. With excellent durability and a long lifespan, it meets the requirements for both new construction projects and pipe replacements. Contact us for customized solutions and professional technical support.
